How the Reaction Stops

Atmospheric corrosion of steel is an electrochemical cell operating on the surface of the metal. At anodic sites iron gives up electrons and goes into solution. At cathodic sites those electrons are consumed by oxygen and water. Between them, a film of moisture on the surface acts as the electrolyte carrying current. All three parts have to be present simultaneously for the reaction to proceed.

That gives you three theoretical ways to stop it, and only one of them is practical on an existing asset.

Remove the metal — that is replacement, not repair. Remove the oxygen — possible in sealed or immersed systems, not on open structures. Remove the electrolyte — this is the one you can act on. Keep liquid water off the steel surface and the cell has no current path.

A barrier coating does exactly that, but only if it is genuinely continuous. A film with pinholes, shrinkage voids, or thin spots at edges is not a barrier — it is a set of localized cells with a concentrated water path, which is why coating failures often look worse than no coating at all.

Which is why thickness and continuity matter more than any additive: transmission of water vapour and oxygen through a polymer film falls off roughly in proportion to its thickness. Going from 3 mils to 40 is not a 13-fold improvement in appearance — it is a change in whether diffusion matters at all over the asset's remaining life.

Several properties matter more on a rusting asset than they would on new steel.

100% solids, so no shrinkage. Solvent-borne coatings withdraw as they cure, putting the film under tension while it is bonding. On a rough, pitted, oxidized surface that stress concentrates at exactly the irregularities you were trying to seal. Polyurea has nothing to lose, so it does not pull.

High build in one pass. A rusted surface has profile — pits, scale texture, weld irregularity. Twenty to sixty mils covers that topography comfortably. Three mils of paint follows it, thinning over every high point.

Gels in seconds. It cannot run out of a pit or off an edge before it sets, so the film thickness in the depressions is real rather than nominal.

Elongation of 300 to 400%. Assets that have been rusting are usually assets that move — vibration, thermal cycling, load. A brittle remedial coating cracks at those stresses and channels water into the crack.

Fast return to service. Remedial work is usually unplanned, which means the window is short and negotiated. Tack-free in under a minute keeps it inside a shift.

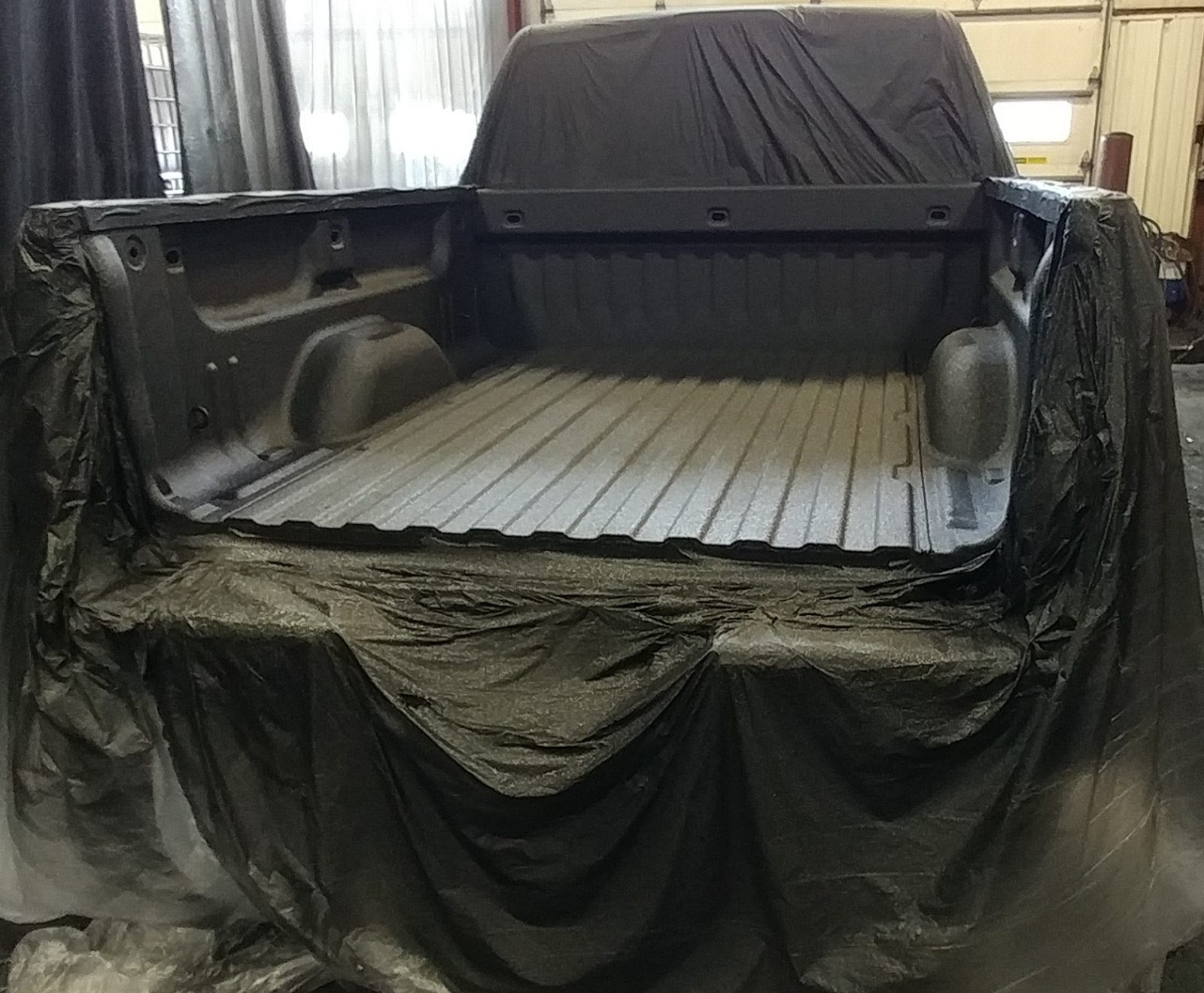

This is where remedial work is won or lost, and where most well-intentioned attempts fail.

Remove everything loose. Needle guns, wire wheels, scrapers, and sanders — SSPC-SP3 power-tool cleaning. The standard is not "looks better," it is that nothing remains which a putty knife can lift. Anything you leave will eventually release and take the membrane with it.

Leave sound tight rust in place. Once dry and sealed away from oxygen and moisture, adherent oxide is inert. Chasing it to bare metal by hand is enormous labour for limited benefit on most maintenance assets — this is the trade that makes remedial coating affordable, and it carries a reduced-warranty note we state plainly.

Degrease before abrading, not after. Abrading first drives oil and contamination into the profile you just created. Super Orange Cleaner handles most industrial and road soils.

Wash and test for chlorides. Mandatory in coastal, de-icing, and wash-down environments. Pressure-wash, let dry, test, and retest if it fails. Sealing salt against steel drives osmotic blistering — the coating lifts and the corrosion continues underneath it.

Dry it, and keep it above dew point. Pitted, oxidized surfaces hold moisture. Warm the substrate or wait; the membrane will not bond through condensation.

Blast where you can. If the asset can be taken down and blasted to SP6 with a 2–4 mil profile, do it. That earns the full warranty and better adhesion. SP3 exists because that is frequently not an option — not because it is equivalent.
